Expert 1.0 Acre

The Expert 1.0 Acre greenhouse expands production capacity while maintaining an efficient and flexible hydroponic system. Covering 4,032 m² (43,400 sq. ft.), this greenhouse is ideal for commercial fruit and leafy vegetable production, supporting local-to-local food systems and regional supply chains.

With a 5-meter (16.5-foot) height, integrated heating, and energy-efficient irrigation, the Expert 1.0 Acre greenhouse provides a balanced mix of scale and efficiency, allowing growers to refine their production processes before expanding further.

Metric

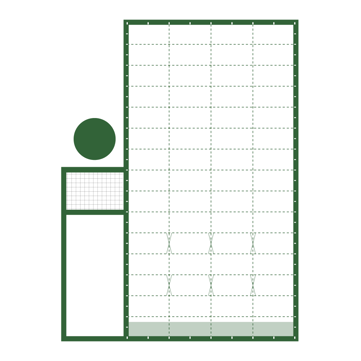

The Expert 1 Acre facility is designed with a designated pathway along one side for streamlined access. Entry into the cultivation area is facilitated through a sliding door from the service building, positioning the crops and cultivation systems to the left upon entry. The technical area*, housing energy and irrigation equipment, is accessible through the open service zone**, ensuring efficient workflow and maintenance access.

Greenhouse

Length	275 ft 7 in	(21x [13 ft 1 in] = 275 ft 7 in)
Width	157 ft 6 in	(6x [26 ft 3 in] = 157 ft 6 in)
Area	43,400 sq ft	1.0 Acre
Height	15 ft 9 in
Snow load¹	7.31 psf
Crop load	3.13 psf
Installation loads	1.46 psf
Windspeed²	105 mph
¹ In heavy snow areas a snow melt heating to be applied
² Reduction factors apply

Service Building

Length	131 ft 3 in	(10x [13 ft 1 in] = 131 ft 3 in)
Width	39 ft 4 in	(1x [39 ft 4 in] = 39 ft 4 in)
Area	5,167 sq ft
Height	15 ft 9 in
*Energy and Irrigation room included with separation walls
**Packing handling and office space by local contractor inside this prefab building

Greenhouse

Length	84.0 m	(21x 4.0 = 84.0m)
Width	48.0 m	(6x 8.0 = 48.0m)
Area	4,032 m²	1.0 Acre
Height	4.8 m
Snow load¹	350 N/m²
Crop load	150 N/m²
Installation loads	70 N/m²
Windspeed²	29.5 m/s
¹ In heavy snow areas a snow melt heating to be applied
² Reduction factors apply

Service Building

Length	40.0 m	(10x 4.0m = 40.0m)
Width	12.0 m	(1x 12.0m = 12.0m)
Area	480 m²
Height	4.8 m
*Energy and Irrigation room included with separation walls
**Packing handling and office space by local contractor inside this prefab building

The Expert 1 Acre model is designed for hydroponic growing methods, including hanging gutters or table-based cultivation. Hydroponics enables greater yield predictability and efficiency, though actual production will still depend on climate, crop selection, and management strategies.

Tomatoes	Imperial	- Growlights -	Metric	- Growlights -
Beef	600,500 lbs.	- No lights -	272,400 kg	- No lights -
TOV	400,500 lbs.	- No lights -	181,700 kg	- No lights -
Cocktail	320,500 lbs.	- No lights -	145,400 kg	- No lights -
Cherry	160,500 lbs.	- No lights -	72,850 kg	- No lights -
Cucumbers
Long	438,500 lbs.	- No lights -	198,950 kg	- No lights -
Midi	317,500 lbs.	- No lights -	144,050 kg	- No lights -
Mini	121,000 lbs.	- No lights -	54,900 kg	- No lights -
Snack	68,500 lbs.	- No lights -	31,100 kg	- No lights -
Bell Peppers
Green	212,000 lbs.	- No lights -	96,200 kg	- No lights -
Red	227,000 lbs.	- No lights -	103,000 kg	- No lights -
Yellow	219,500 lbs.	- No lights -	99,600 kg	- No lights -
Orange	196,500 lbs.	- No lights -	89,150 kg	- No lights -
Strawberries
Seasonal	91,000 lbs.	- No lights -	41,300 kg	- No lights -
Everbearing	110,000 lbs.	- No lights -	49,900 kg	- No lights -
Lettuce
Romaine	132,500 lbs.	- No lights -	60,150 kg	- No lights -

The starting-from prices listed below exclude shipment and serve as an initial reference. Additional options may be required to adapt the greenhouse to local climatic conditions or optimize it for specific crops. We offer updated price lists and configuration options upon request to tailor the setup to your needs.

Disclaimer: These pricing figures are for informational purposes only and do not constitute a binding offer. No rights can be derived from these figures.

Access the layout drawings with detailed sizing specifications in PDF and DWG formats for a clear overview of the Expert 1 Acre model. For detailed pricing, a bill of materials, and available options, please fill out the form below. This allows us to tailor the 1 Acre model to your specific requirements.

Layout Drawing PDF
